Amplificateur Pour Subwoofer
Sinbosen – amplificateur stéréo à 2 canaux, fonctionne avec des haut-parleurs de basse de 18 pouces
No. d'article: DS-14K
Model: DS-14K
8Ω Stereo Power (RMS): 2,400W X 2CH
4Ω Stereo Power (RMS): 4,400W X 2CH
Certification: CE, ROHS
Warranty: 3 Years
Special service: OEM service offered
8Ω Stereo Power (RMS): 2,400W X 2CH
4Ω Stereo Power (RMS): 4,400W X 2CH
Certification: CE, ROHS
Warranty: 3 Years
Special service: OEM service offered
Description
| DS-7K | DS-9K | DS-14K | DS-6Q | DS-10Q | DS-20Q | DS-22Q | |
| 8 ohm Stereo Power (RMS) | 1450WX2 | 1600WX2 | 2400WX2 | 625WX4 | 1350WX4 | 2200WX4 | 2500WX4 |
| 4 ohm Stereo Power (RMS) | 2800WX2 | 3000WX2 | 4400WX2 | 1250WX4 | 2100WX4 | 4000WX4 | 4650WX4 |
| 8 ohm Bridged Power (RMS) | 5600W | 6000W | 8800W | 2500WX2 | 4200WX2 | 8000WX2 | 9300WX2 |
| 4 ohm Bridged Power (RMS) | 7000W | 9000W | 14000W | 3000WX2 | 5000WX2 | 9000WX2 | 15000WX2 |
| Frequency Response(+o/-0.3dB,1W/8Ω)： | 20 Hz - 34 kHz | ||||||
| THD 20 Hz - 20 kHz for 1W: | <0.1% | ||||||
| Signal-to-Noise Ratio: | >112 dBA | ||||||
| Channel separation (Crosstalk) at 1 kHz ： | >70 dB | ||||||
| Input Connectors (per channel)： | 3 pin XLR, electronically balanced | ||||||
| Output Connectors (per channel)： | Binding Posts 2-pole | ||||||
| Class： | TD | ||||||
| TourClass Protection： | ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input | ||||||
| Operating voltage, 220V / 110V nominal： | 180-240 V / 90-130 V selectable | ||||||
| Voltage Gain(dB)： | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | ||||||
| Input impedance： | 20 kOhm | ||||||
| Level adjustment (per ch.)： | Front panel potentiometer, 31 positions detented from -inf to 0 | ||||||
Question :What subwoofers do you have now? How big is their power? Can your amplifiermake your subwoofers the best sound?
If not, try our DS-14K! Its power 4,400 watts at 4 ohms, suitable for dual 18-inch subwoofers.

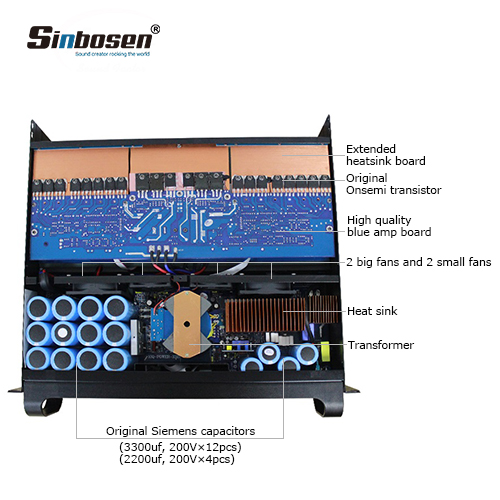

►Use Original Siemens high-quality capacitor 3300uf 200V.
►Original ONSEMI transistor .
►Neutrik XLR*/Speakon connectors
►2 Channel Class TD Switching power amplifier
►2 x 4,400 Watts into 4 Ohms, 2 X 2,400 Watts into 8 Ohms.
►High-quality Fan from TAIWAN.
►Create SUPER BASS sound,suit for 2 units 18 inch subwoofer.
►Separately controllable on Gain.
►Scalable Voltage Peak Limiter (VPL).
►Bridge-mode operation for touring applications.
►Comprehensive protection scheme.
►Applicable for big show,concert,dancing party,wedding and more enterainment or business performance.
 |
 |
 |
 |
 |
||||||
