Haut-parleur coaxial

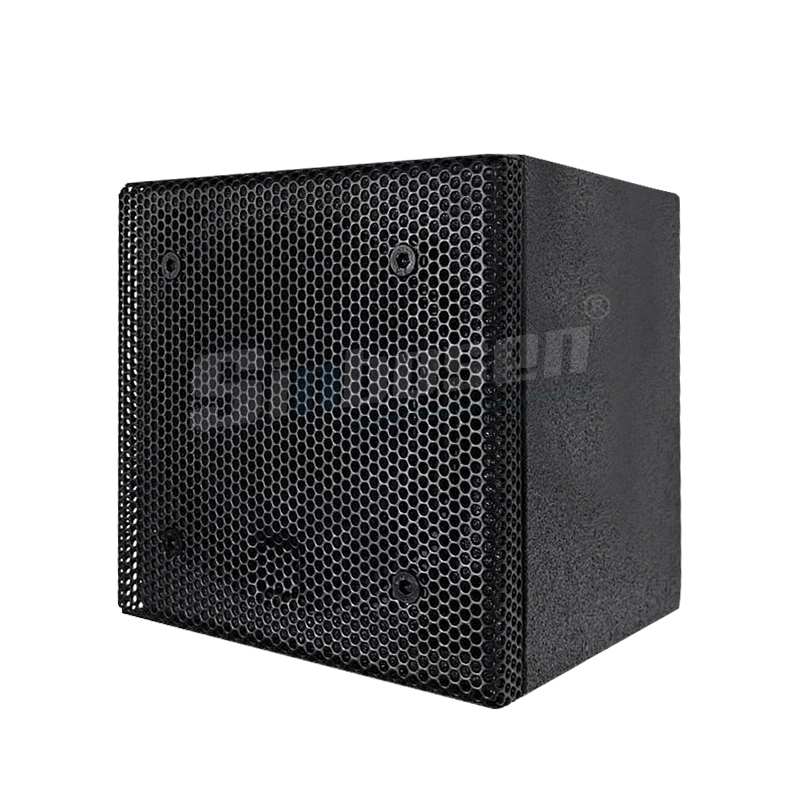

Mini haut-parleur coaxial haut de gamme portable de 5 pouces
No. d'article: 5X
Type: 2-way passive
Max SPL: 121 dB
Bandwidth: 95 Hz- 20 KHz
Transducers: LF : 1 x 5"；HF : 1 x 1"
Weight: 3.5 kg / 7.7 lb
Directivity: H: 110° ; V: 110°
Max SPL: 121 dB
Bandwidth: 95 Hz- 20 KHz
Transducers: LF : 1 x 5"；HF : 1 x 1"
Weight: 3.5 kg / 7.7 lb
Directivity: H: 110° ; V: 110°
Description
| 2 way 5 inch portable speaker | |
| Usable bandwidth (-10 dB) | 95 Hz – 20 kHz |
| Maximum SPL1 | 121 dB |
| Nominal directivity (-6 dB) | 110° axisymmetric |
| Transducers | LF: 1 × 5″ cone driver |
| HF: 1 × 1″ diaphragm compression driver | |
| Acoustical load | Bass-reflex |
| Nominal impedance | 16 Ω |
| Connectors | IN: 1 × 4-point speakON |
| LINK: 1 × 4-point speakON | |
| IN/LINK: 2 × 2-point screw terminals | |
| Rigging and handling | 2 inserts for Adjustable U-bracket |
| 1 × 3/8″ insert for microphone stand | |
| Weight (net) | 3.5 kg / 7.7 lb |
| Cabinet | First grade plywood |
| Front | Steel with anti-corrosion coating |
| Finish | Dark grey brown |
FEATURE
Based on a two way passive design with a nominal impedance of 16ohms, the 5X mini speaker houses a 1" diaphragm compression driver and a coaxial 5" low frequency driver (bass reflex adjustment).Use First graded plywood to ensure the best possible sound quality and mechanical integrity.
