Haut-parleur de caisson de basses
Powerful Subwoofer Dual 18 inch Hybrid horn reflex loading
No. d'article: S-218H
Description
|

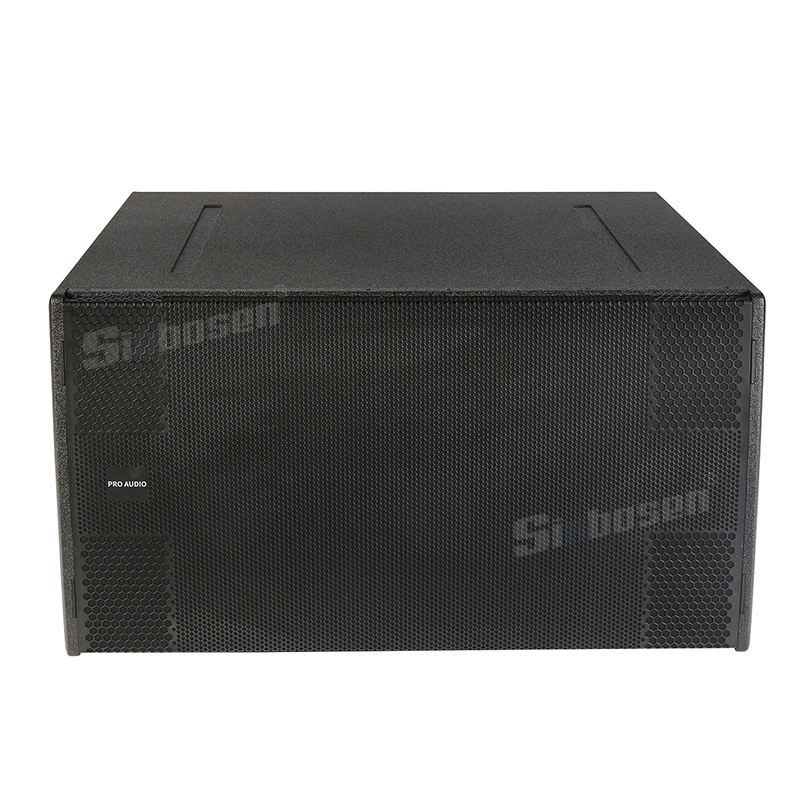

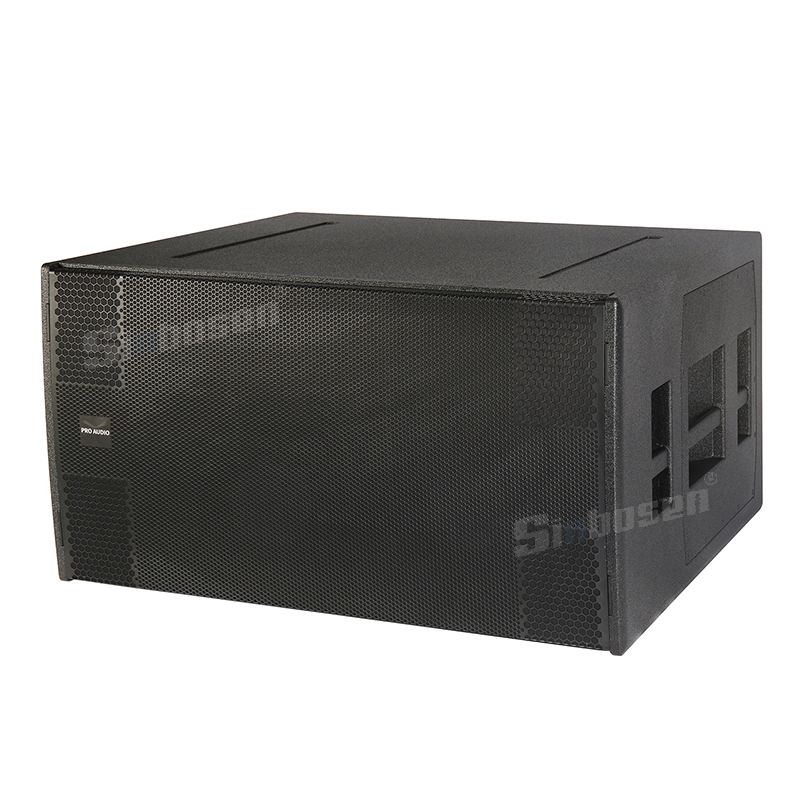

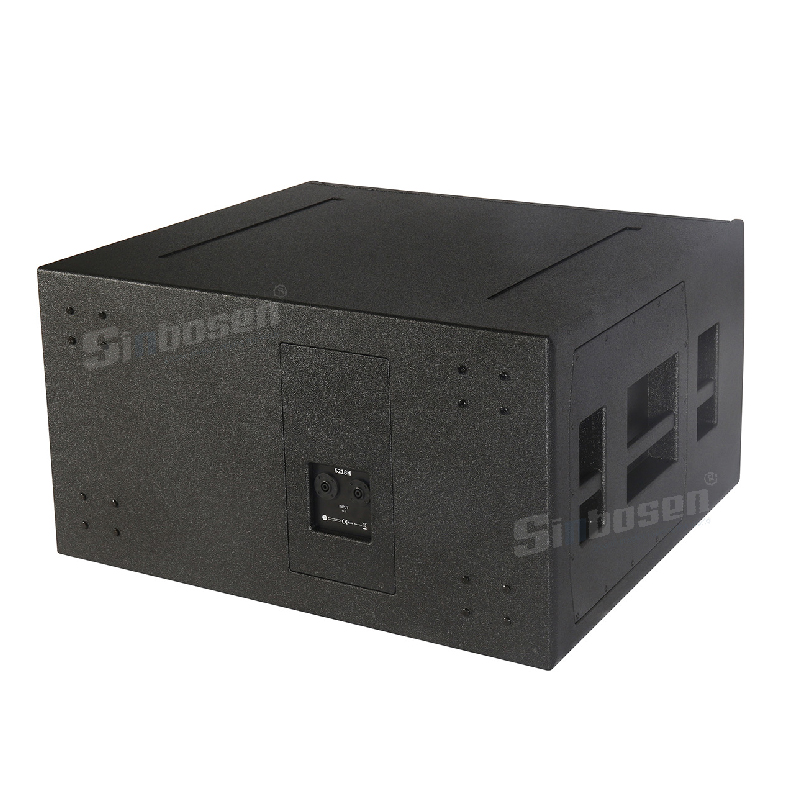

S-218H Dual 18-inch Subwoofer
|
|
|
Type
|
Hybrid horn/reflex subwoofer
|
|
Frequency Response
|
32Hz-150Hz ±3dB, -10dB @ 27Hz
|
|
Driver
|
2 x 18” (460mm)/4.5” (115mm) voice coil, long excursion, neodymium magnet, waterproof cone
|
|
Rated Power
|
3000W AES, 12000W peak
|
|
Sensitivity
|
107dB
|
|
Maximum SPL
|
142dB continuous, 148dB peak, 154dB peak with crest factor 4
|
|
Nominal Impedance
|
4 ohms
|
|
Dispersion (-6dB)
|
Omnidirectional
|
|
Enclosure
|
Multi-laminate birch/18mm plywood
|
|
Finish
|
Black textured paint
|
|
Protective Grille
|
Black perforated steel
|
|

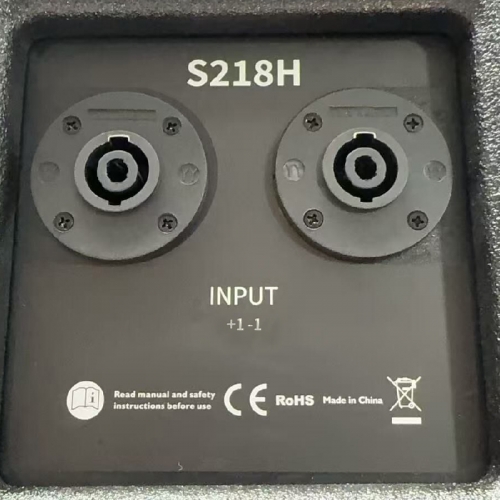

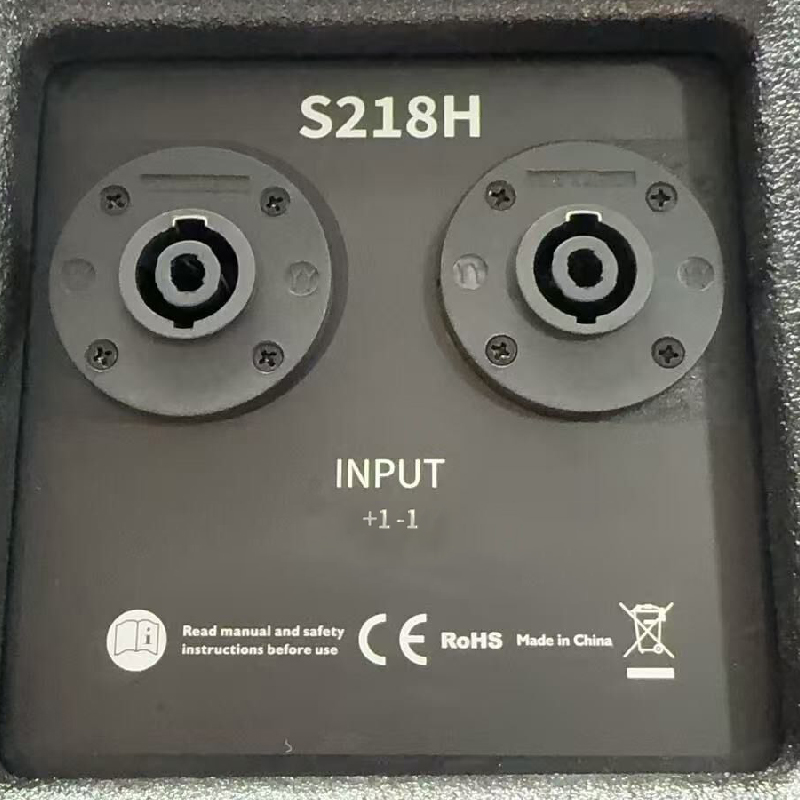

Connectors
|
2 x NL4
|
|
Fittings
|
Two skids on base, matching channels on top.4 x bar handles
|
|
Four rear-mounted 100mm (4in) castors
|
|
|
4 x fittings for optional transit cover
|
|
|
Dimensions
(INCL FEET) |
(W) 1112mm x (H) 607mm x (D) 1013mm (1140mm including castors)
|
|
(W) 43.8in x (H) 23.9in x (D) 39.9in (44.9in including castors)
|
|
|
Weight
|
124kg (273lbs)
|
| Powerful Subwoofer: |
| The S-218H is a high-output subwoofer capable of producing up to 148dB peak output at 1 meter. |
| It is suitable for applications requiring maximum low-frequency output, such as Wavefront Precision WL12 arrays and premium permanent installations like nightclubs. |
| Hybrid Technology: |
| The subwoofer uses Hybrid horn/reflex loading, combining the efficiency of bass horn technology with the low-frequency extension of a reflex design. |
| This design allows it to produce significantly higher output levels than traditional reflex-loaded subwoofers. |
| Operating Range and Drivers: |
| It operates within a frequency range of 32-150Hz ±3dB. |

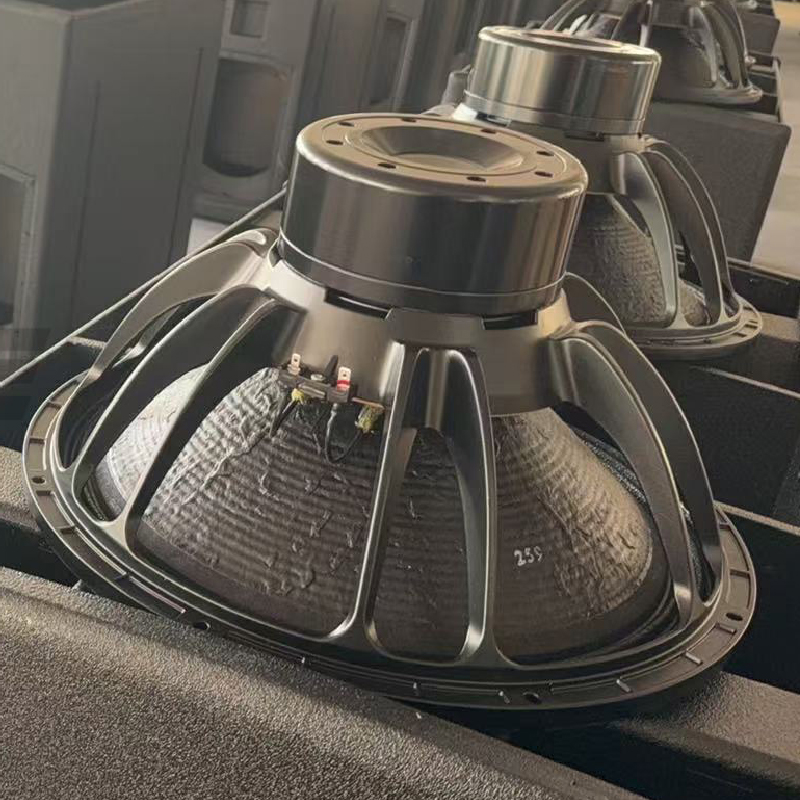

| Features dual long-excursion 18” (460mm) drivers with 4.5” (115mm) voice coils, water-resistant cones, and triple roll surrounds. |
| Durable Construction: |
| The enclosure is made from multi-laminate plywood and coated with hardwearing textured black polyurea. |
| A rigid perforated steel grille protects the front, while interlocking skids protect the top and bottom surfaces and prevent movement when stacked. |
| Weather Resistance: |
| The subwoofer can be made fully weather-resistant with an input board cover accessory, making it suitable for permanent outdoor use. |
| Unique Wiring Configuration: |
| Features a unique wiring configuration that reverses connections to the NL4 labeled ‘LINK’. |
| This configuration ensures each subwoofer is driven by one amplifier channel, avoiding load impedances of less than 4Ω. |
| Optional Transit Cover: |
| An optional transit cover is available to protect the cabinet during portable applications. |
| Four locating brackets built into the cabinet corners need to be reversed to use the transit cover. |
