Amplificateur de puissance de laboratoire 4 voies Sinbosen FP20000Q 4000w pour basse basse de 18 pouces
Amplificateur Pour Subwoofer

Sinbosen FP20000Q Amplificateur 10000 watts pour double caisson de grave de 18 pouces

No. d'article: DS-20Q
Model: DS-20Q
8Ω Stereo Power (RMS): 2,200W X 4CH
4Ω Stereo Power (RMS): 4,000W X 4CH
Certification: CE, ROHS
Warranty: 3 Years
Description
Sinbosen Audio DS Series Amplifier
  DS-7K DS-9K DS-14K DS-6Q DS-10Q DS-20Q DS-22Q
8 ohm Stereo Power  (RMS) 1500WX2 1800WX2 2400WX2 700WX4 1350WX4 2200WX4 2500WX4
4 ohm Stereo Power  (RMS) 2800WX2 3000WX2 4400WX2 1300WX4 2100WX4 4000WX4 4650WX4
8 ohm Bridged Power (RMS) 5600W 6000W 8800W 2500WX2 4200WX2 8000WX2 9300WX2
4 ohm Bridged Power (RMS) 7000W 9000W 14000W 3000WX2 5000WX2 9000WX2 15000WX2
Frequency Response(+o/-0.3dB,1W/8Ω): 20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1W: <0.1%
Signal-to-Noise Ratio: >112 dBA
Channel separation (Crosstalk) at 1 kHz : >70 dB
Input Connectors (per channel): 3 pin XLR, electronically balanced
Output Connectors (per channel): Binding Posts 2-pole
Class: TD
TourClass Protection: ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 220V / 110V nominal: 180-240 V / 90-130 V selectable
Voltage Gain(dB): 23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance: 20 kOhm
Level adjustment (per ch.): Front panel potentiometer, 31 positions detented from -inf to 0 dB
Feature


4 Channel Class TD Switching power amplifier.
4 x 4,000 Watts into 4 Ohms,4 x 2,200 Watts into 8 Ohms.
Creat SUPER sound quality,good for dual 18 inch subwoofer.

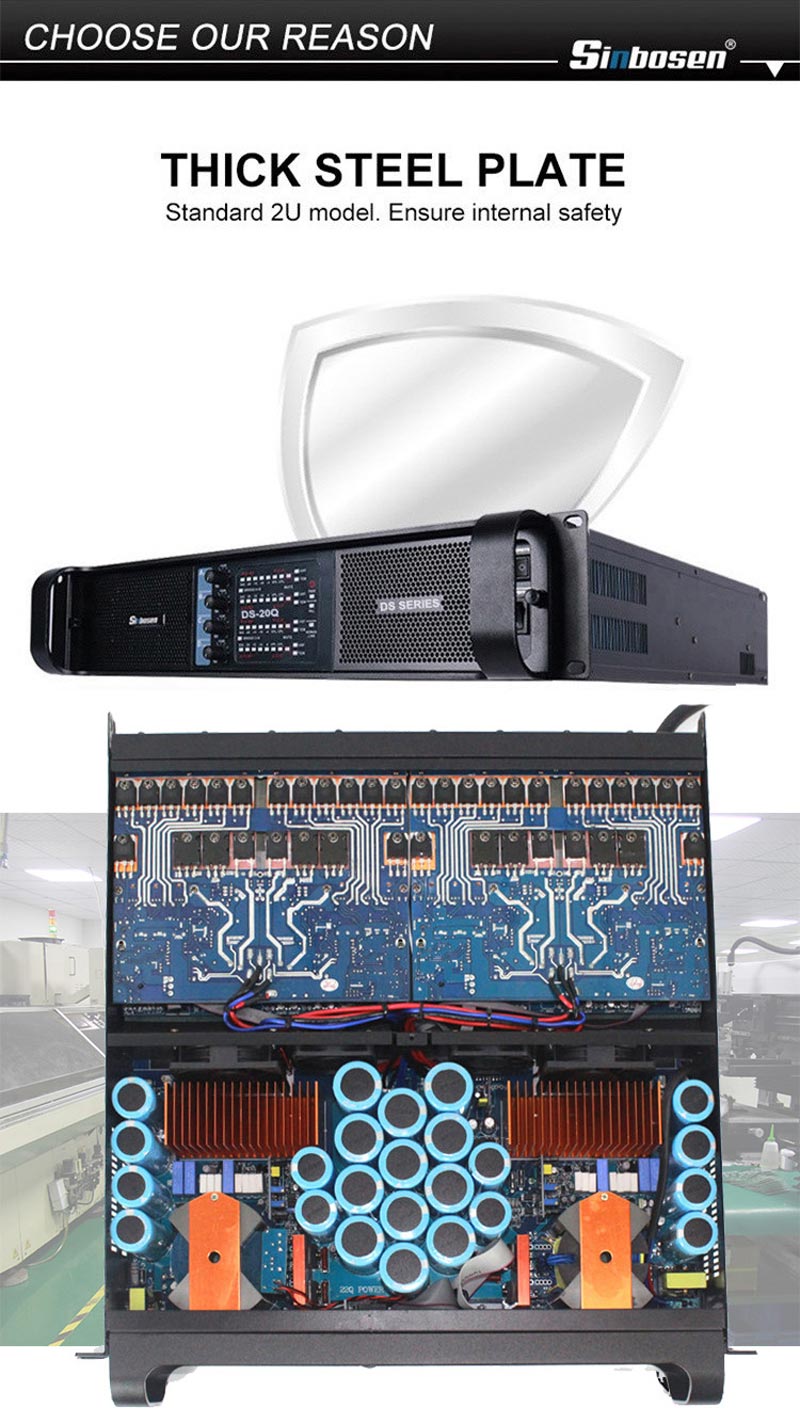

Extended heatsink board to 94 mm.
Separately controllable on Gain.
Scalable Voltage Peak Limiter (VPL).
Bridge-mode operation for Touring Applications.
Comprehensive protection scheme.

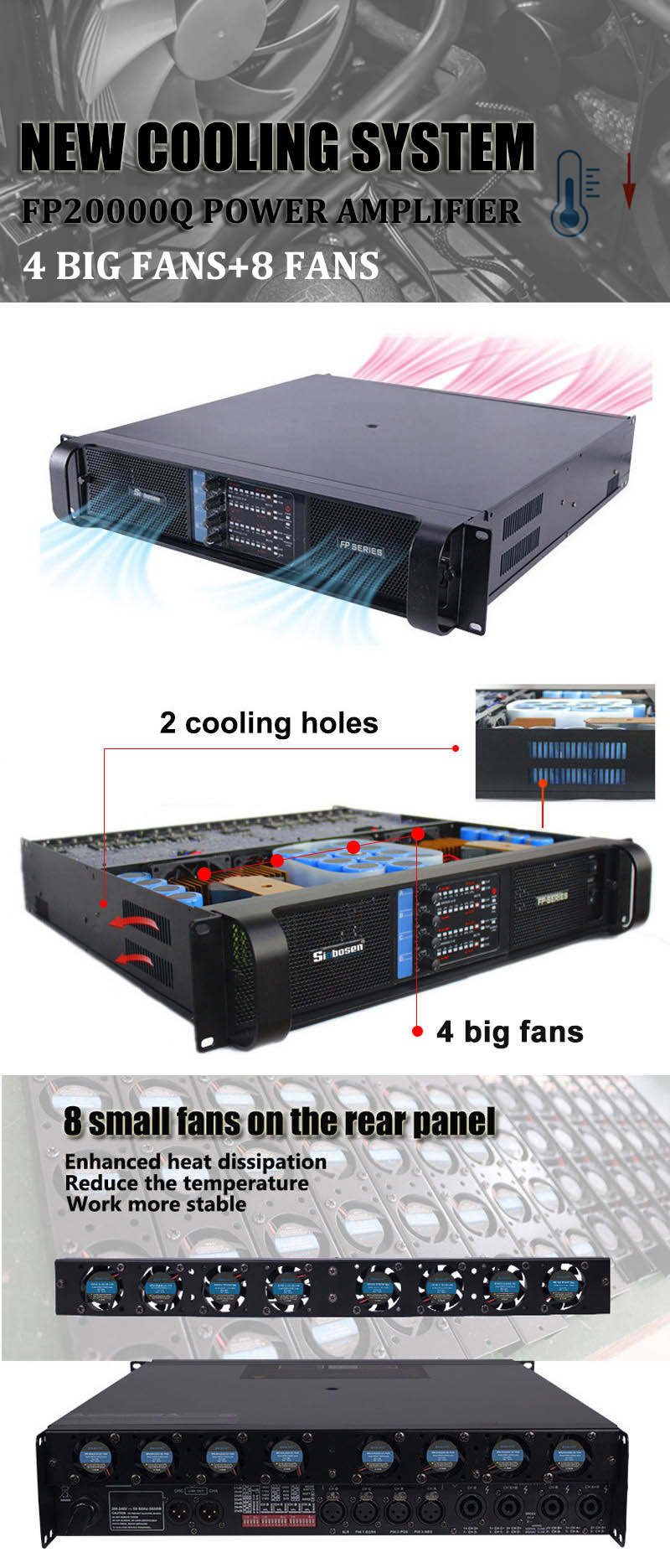

New cooling system: 8 small fans are added to the rear panel to quickly dissipate heat. Work is more stable.
Neutrik XLR*/speakon connectors.

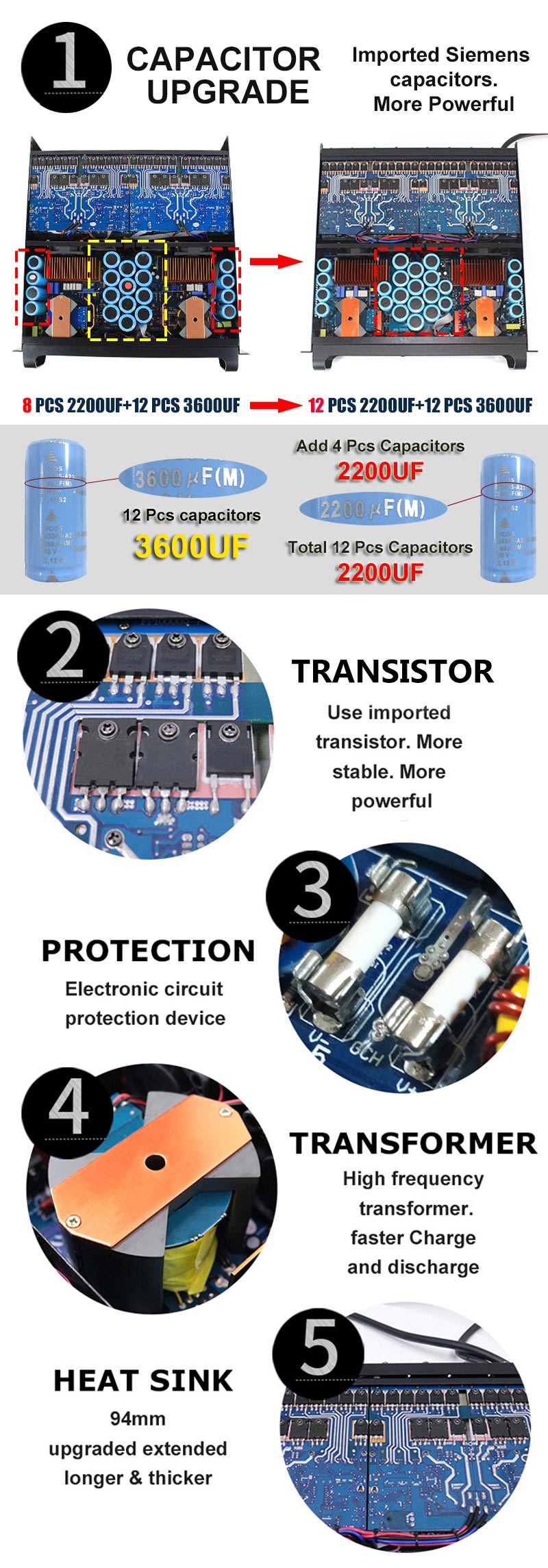

Upgrade Import Siemens capacitor 3600uf 200V, Add 4 2200UF capacitors (8800UF).

Use Original ONSEMI transistor.
High quality fans from TaiWan.

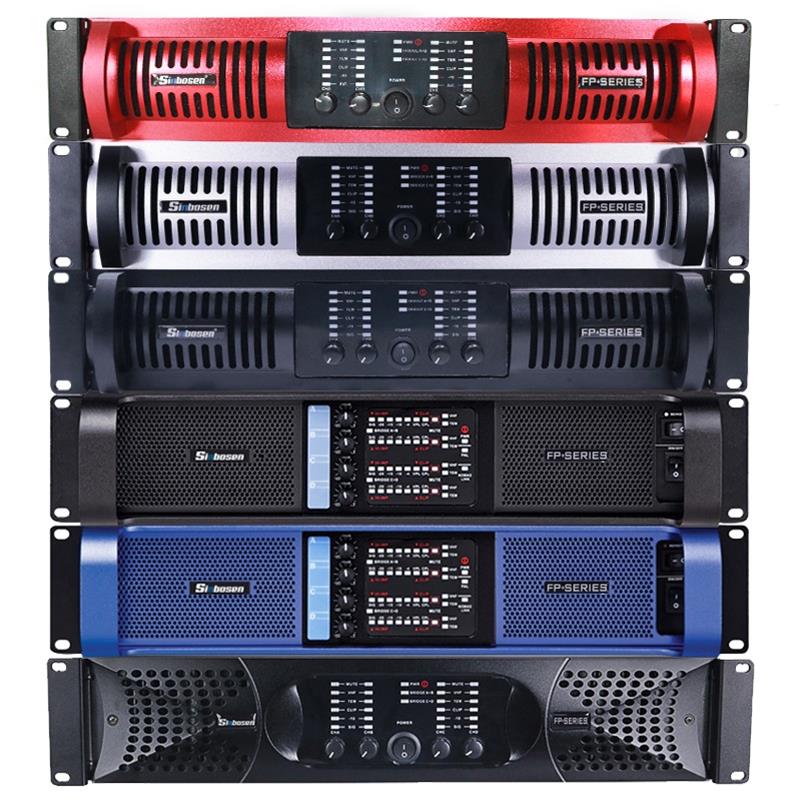

Multi-color panel.
