Amplificateur Pour Subwoofer
Sinbosen DS-24K amplificateur haute puissance professionnel 2 canaux 10000 watts amplificateur de puissance pour caisson de basses 18/21 pouces
No. d'article: DS-24K
Model: DS-24K
8Ω Stereo Power (RMS): 4,200W X 2CH
4Ω Stereo Power (RMS): 7,500W X 2CH
Class: TD Power Amplifier
Certification: CE, ROHS
Warranty: 3 Years
Special service: OEM service offered
8Ω Stereo Power (RMS): 4,200W X 2CH
4Ω Stereo Power (RMS): 7,500W X 2CH
Class: TD Power Amplifier
Certification: CE, ROHS
Warranty: 3 Years
Special service: OEM service offered
Description
| DS-10Q | DS-9K | DS-14K | DS-24K | DS-7K | DS-20Q | DS-22Q | |
| 8 ohm Stereo Power (RMS) | 1350WX4 | 1800WX2 | 2400WX2 | 4200WX2 | 1500WX2 | 2200WX4 | 2500WX4 |
| 4 ohm Stereo Power (RMS) | 2100WX4 | 3000WX2 | 4400WX2 | 7500WX2 | 2800WX2 | 4000WX4 | 4650WX4 |
| 8 ohm Bridged Power (RMS) | 4200WX2 | 6000W | 8800W | 5600W | 8000WX2 | 9300WX2 | |
| 4 ohm Bridged Power (RMS) | 5000WX2 | 9000W | 14000W | 7000W | 9000WX2 | 15000WX2 | |
| Frequency Response(+o/-0.3dB,1W/8Ω)： | 20 Hz - 34 kHz | ||||||
| THD 20 Hz - 20 kHz for 1W: | <0.1% | ||||||
| Signal-to-Noise Ratio: | >112 dBA | ||||||
| Channel separation (Crosstalk) at 1 kHz ： | >70 dB | ||||||
| Input Connectors (per channel)： | 3 pin XLR, electronically balanced | ||||||
| Output Connectors (per channel)： | Binding Posts 2-pole | ||||||
| Class： | TD | ||||||
| TourClass Protection： | ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input | ||||||
| Operating voltage, 220V / 110V nominal： | 180-240 V / 90-130 V selectable | ||||||
| Voltage Gain(dB)： | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | ||||||
| Input impedance： | 20 kOhm | ||||||
| Level adjustment (per ch.)： | Front panel potentiometer, 31 positions detented from -inf to 0 dB | ||||||

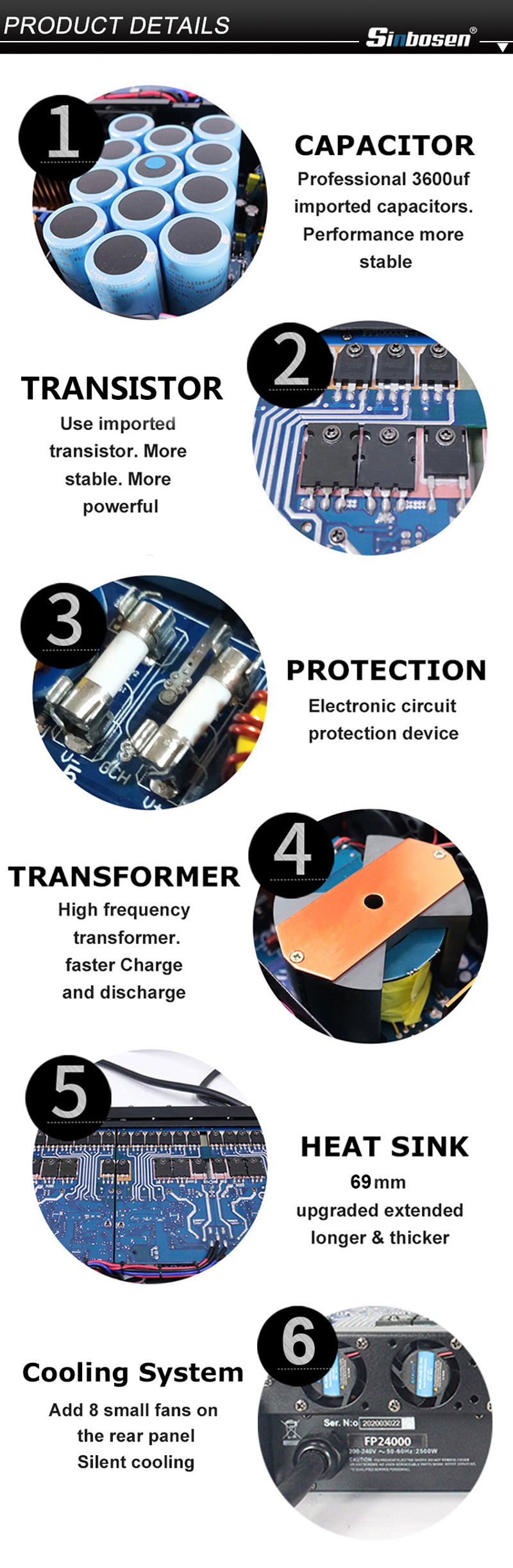

| DS-24K Feature: 2 Channel Class TD Switching power amplifier 2 x 7500 into 4 Ohms, 2 x 4200 Watts Watts into 8 Ohms Create SUPER BASS sound, suitable for subwoofers 21 inches and above. Separately controllable on Gain. Scalable Voltage Peak Limiter (VPL) Bridge-mode operation for Touring Applications. Comprehensive protection scheme. Use Original Siemens high quality capacitor 3600uf 200V. Use Original ONSEMI transistor. Neutrik XLR*/Speakon connectors. Extended heatsink board to 69 mm. |
♦Impedance Matching :
Our amplifier suitable for impedance above 4ohms and above.
♦How to match our amplifier with your speaker ?
For the Line array or full range speaker , the RMS power of amplifier is 1.5 times than the speaker's RMS power. For the subwoofer, the RMS power of amplifier is twice than the subwoofer.
 |
 |
 |
 |
 |
